Optilume logoPTILUME
VX3-3S

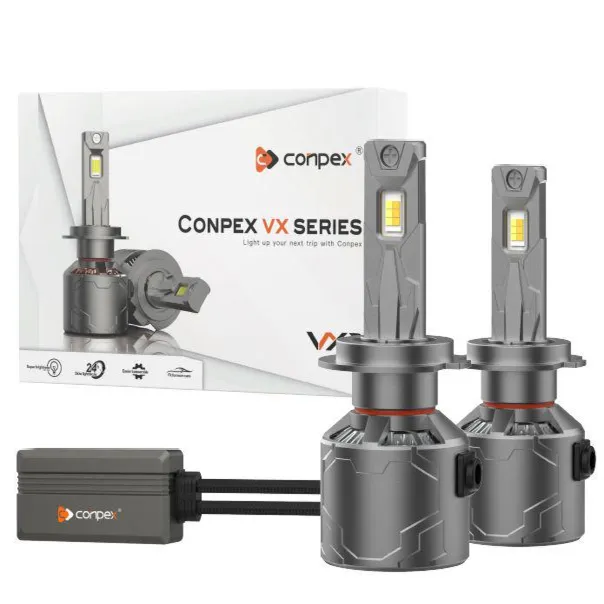

VX3-3S LED HEADLIGHT

Automotive Lighting

OPTILUME VX3-3S LED headlight is a high-performance headlight. The power of a single bulb reaches 60W,using 3570 6*68MIL high-brightness lamp beads.A single bulb outputs up to 5000 lumens, the 6000K white light has excellent spotlight effect and clear long - range projection. The headlight housing  is made of  zinc alloy,which has the characteristics of high temperature resistance and corrosion resistance. With a triple heat dissipation structure featuring double copper tube, fins, and a hydraulic fan, it can maintain stable brightness and long lifespan even in extreme environments ranging from -40°C to +80°C. The 33-mm small base design is suitable for quick installation in more vehicle models. The adjustable base allows the LED to rotate flexibly during installation, enabling the bulb to reach its optimal state.

Key Features

  • High-brightness output: 120W per pair, 10 000lm brightness, 6000K white light with long-range focus.
  • Triple cooling system: Double copper tube + fins + hydraulic fan for efficient cooling and extended lifespan.
  • Durable material: Zinc alloy housing for high-temperature and corrosion resistance, with stable performance.
  • Adjustable base: Flexible adjustment of light pattern for a longer and more precise illumination range.
  • Wide operating temperature: -40°C to +80°C, suitable for all weather conditions.
  • Long - life design: The service life exceeds 50,000 hours. With low light decay, it is more durable.
  • High compatibility: With an input range of 9V - 30V and a small base design, it is suitable for many vehicle models.
Quote List

Product Details

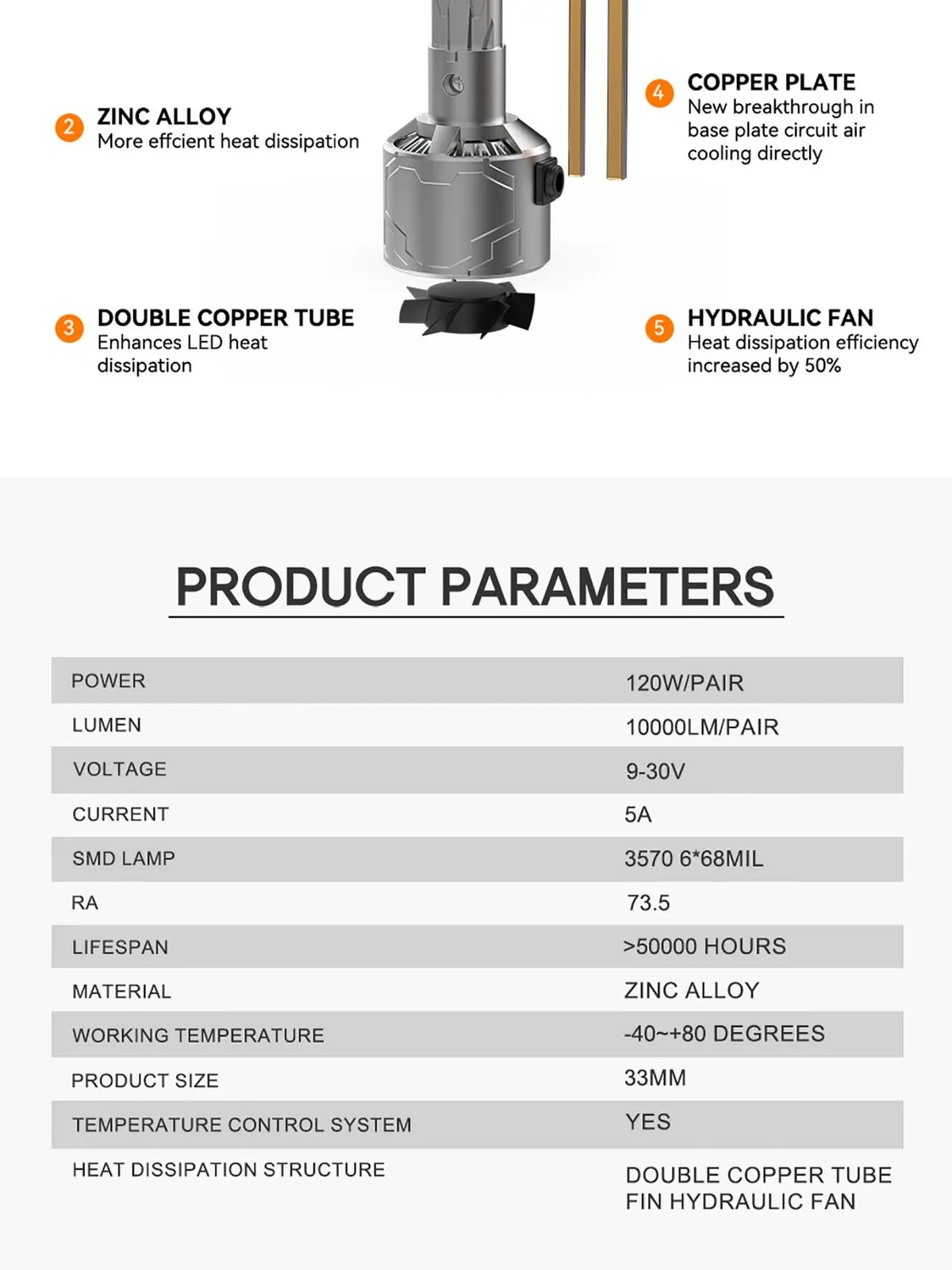

VX3-3S LED HEADLIGHT — product detailsVX3-3S LED HEADLIGHT — product detailsVX3-3S LED HEADLIGHT — product details

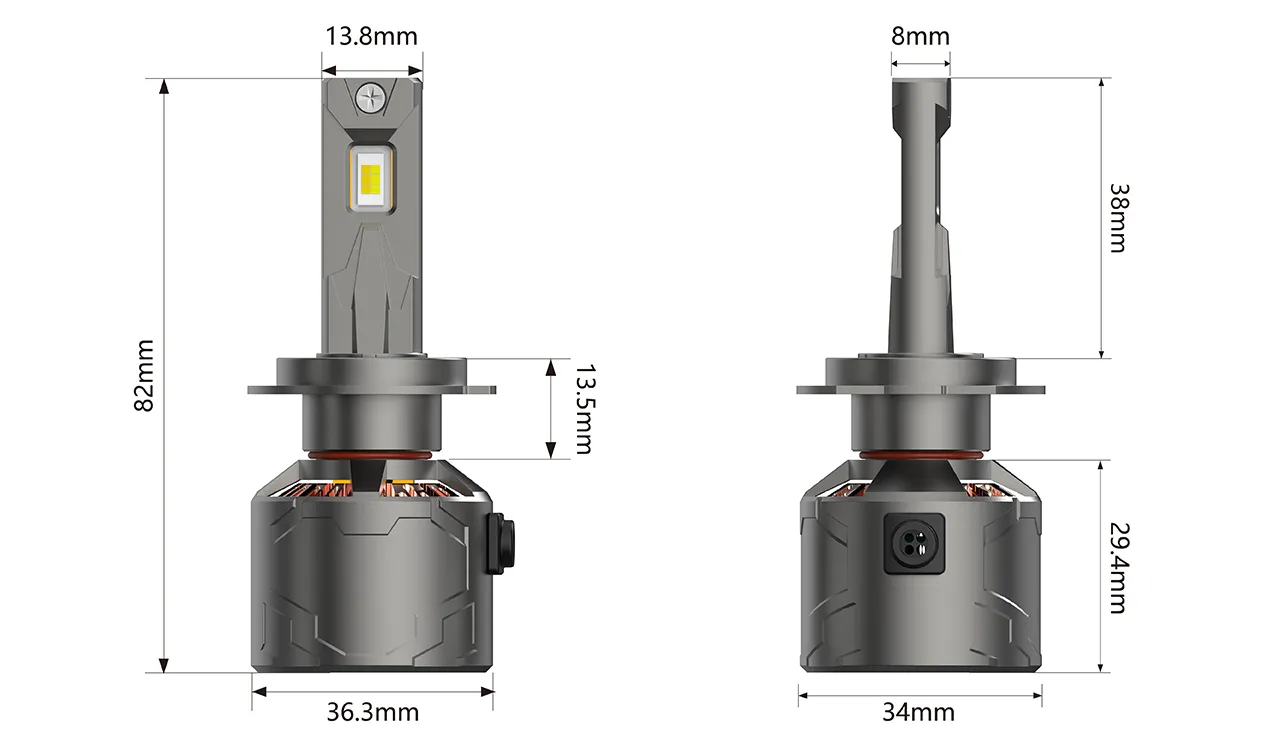

Dimensions


VX3-3S LED HEADLIGHT — dimensions
